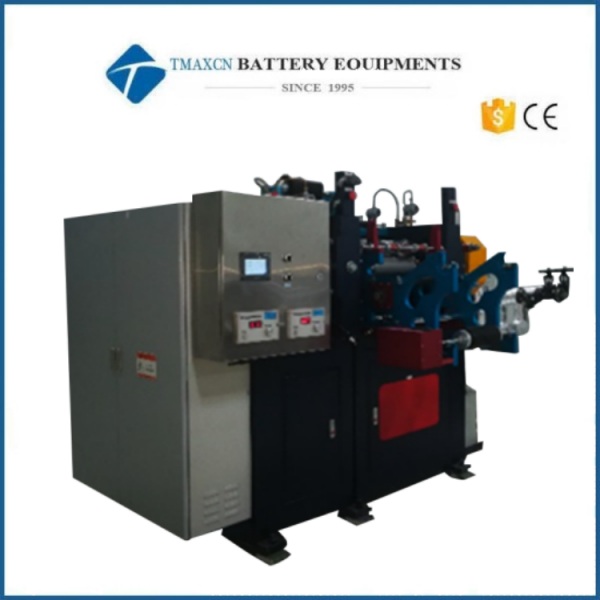

Dry Electrode Film Rolling Press Machine
The dry electrode film rolling press machine is a specialized piece of equipment used in the production of dry electrodes for energy storage devices, such as lithiumion batteries and solidstate batteries. This machine plays a critical role in compressing the dry powder mixture of active materials, binders, and conductive additives onto a current collector foil (e.g., aluminum or copper) to form a dense and uniform electrode layer. By eliminating the need for solvents, this technology significantly reduces environmental impact while enhancing the mechanical properties of the electrode.
In this article, we will explore the structure, functionality, advantages, challenges, and innovations associated with the dry electrode film rolling press machine.
●What Is a Dry Electrode Film Rolling Press Machine?
A dry electrode film rolling press machine is a highprecision device designed to compress a dry powder mixture into a thin, uniform film on a current collector foil. Unlike traditional wetcoating methods that involve drying solventbased slurries, this machine uses mechanical pressure to adhere the powder mixture directly to the foil. The result is a highly compacted electrode layer with excellent adhesion, mechanical stability, and electrical conductivity.
The primary goal of the dry electrode film rolling press machine is to enable sustainable, efficient, and highperformance electrode fabrication for advanced energy storage applications.
●Key Components of a Dry Electrode Film Rolling Press Machine
A typical dry electrode film rolling press machine consists of the following key components:
1. Roller System
Consists of two or more rollers that apply controlled pressure to compress the dry powder mixture onto the current collector foil.
Ensures uniform thickness and density of the electrode layer.
2. Pressure Control System
Adjusts the pressure applied by the rollers to achieve optimal compaction without damaging the foil or causing defects.
Provides precise control over the electrode's mechanical properties.
3. Temperature Control System
Maintains consistent temperatures during the rolling process to prevent thermal degradation of materials or uneven compaction.
Some machines may incorporate heating or cooling mechanisms to optimize performance.
4. Feeding System
Supplies the dry powder mixture and current collector foil to the roller system in a continuous and controlled manner.
Ensures proper alignment and tension of the foil for accurate coating.
5. Thickness Measurement System
Monitors the thickness of the electrode layer in realtime to ensure uniformity.
Alerts operators if deviations occur, allowing for immediate adjustments.
6. Waste Collection System
Captures excess powder that does not adhere to the foil during the rolling process.
Reduces material waste and ensures a clean working environment.
●Processes Performed by a Dry Electrode Film Rolling Press Machine
The dry electrode film rolling press machine performs the following key processes:
1. Feeding: The dry powder mixture and current collector foil are fed into the machine.
2. Compaction: The rollers apply controlled pressure to compress the powder mixture onto the foil, forming a dense electrode layer.
3. Monitoring: Realtime measurements ensure the electrode layer meets specifications for thickness, density, and uniformity.
4. Collection: The coated foil is collected for further processing, such as cutting and tab welding.
●Advantages of a Dry Electrode Film Rolling Press Machine
1. Environmental Benefits:
Eliminates the use of toxic solvents, reducing emissions and waste.
Reduces energy consumption by avoiding drying and solvent recovery processes.
2. Improved Performance:
Produces electrodes with higher density and better mechanical stability, leading to improved cycle life and performance.
Allows for higher loading of active materials, increasing energy density.
3. Cost Savings:
Simplifies the production process by eliminating solventrelated steps.
Reduces material waste due to precise handling and realtime quality checks.
4. Scalability:
Enables faster production rates compared to traditional wetcoating methods.
Can be easily scaled up for mass production.
5. Flexibility:
Compatible with a wide range of materials, including nextgeneration chemistries like silicon anodes and solidstate electrolytes.
6. Safety:
Minimizes exposure to hazardous chemicals, improving workplace safety.
●Challenges in a Dry Electrode Film Rolling Press Machine
Despite its advantages, the dry electrode film rolling press machine faces certain challenges:
1. Uniformity Control:
Achieving consistent thickness and density across large areas can be challenging due to variations in material properties or roller wear.
2. Material Handling:
Proper feeding and alignment of the dry powder mixture and current collector foil require precise control to avoid defects.
3. High Initial Costs:
Advanced machinery and specialized components come with significant upfront investment.
4. Binder Selection:
Developing binders that work effectively in dry conditions while maintaining adhesion and flexibility is complex.
5. Process Optimization:
Finetuning parameters such as pressure, temperature, and speed is essential for achieving consistent results at scale.
●Innovations in Dry Electrode Film Rolling Press Machines
To address these challenges and enhance productivity, manufacturers are incorporating cuttingedge technologies:
1. Advanced Roller Designs:
Precisionengineered rollers with optimized surface textures improve compaction and adhesion.
2. AI and Machine Learning:
Predictive analytics optimize machine performance, detect anomalies, and improve yield rates.
3. RealTime Monitoring Systems:
Integrated sensors and vision systems provide continuous feedback on thickness, density, and uniformity.
4. Modular Design:
Flexible systems allow for easy reconfiguration to test new materials and chemistries.
5. Sustainability Features:
Ecofriendly practices minimize waste and energy consumption during the fabrication process.
6. Integration with Automation:
Collaborative robotics and IoTenabled systems enhance efficiency and reduce human intervention.
●Applications of Dry Electrode Film Rolling Press Machines
Dry electrode film rolling press machines are used in various industries, including:
1. Battery Production:
Produces electrodes for lithiumion batteries, solidstate batteries, and other advanced battery chemistries.
2. Supercapacitors:
Creates highperformance electrodes for energy storage applications in consumer electronics, automotive systems, and renewable energy.
3. Automotive Industry:
Manufactures electrodes for electric vehicle (EV) batteries, focusing on improving energy density and reducing costs.
4. Renewable Energy:
Develops durable electrodes for gridscale energy storage systems.
5. Consumer Electronics:
Produces compact and efficient electrodes for smartphones, wearables, and portable devices.
●The Future of Dry Electrode Film Rolling Press Machines
As the demand for sustainable and highperformance energy storage solutions grows, dry electrode film rolling press machines will continue to evolve. Key trends shaping the future include:
1. Increased Automation:
Fully autonomous systems will further boost production speeds and reduce costs.
2. Customization Options:
Modular designs will enable manufacturers to tailor machines for specific materials and cell designs.
3. Focus on Sustainability:
Ecofriendly practices and recycling capabilities will become integral parts of future machines.
4. Integration with Emerging Technologies:
Solidstate batteries, flexible electronics, and autonomous systems will drive new innovations in machine design.
5. Smart Manufacturing:
IoTenabled machines will leverage big data and AI to optimize production, reduce waste, and enhance efficiency.
●Conclusion
The dry electrode film rolling press machine is a cornerstone of modern energy storage manufacturing, enabling sustainable, efficient, and highperformance electrode fabrication. Its ability to eliminate solvents, reduce waste, and improve mechanical properties makes it a gamechanger for battery and supercapacitor production.
July 25,2025.
